AS-UVSS-II
New-generation fixed UVSS for high-security access points — engineered for total visual forensic oversight of the vehicle chassis.
- ≈20 MP ultra-high-resolution colour linear imaging (12000 × 7500 px)
- < 1 second high-speed scan & image reconstruction
- ≥ 50-ton load capacity with pressure-resistant bottom tank
- IP68-rated environmental protection
- Integrated automatic ANPR / LPR with blacklist & whitelist
Engineering Excellence in Security
The AS-UVSS-II applies German-grade industrial design to vehicle forensics. Built for permanent installation at critical entry points, it uses advanced linear-array imaging to capture full-colour undercarriage images with no distortion. Every component — from the pressure-resistant bottom tank to the distribution interface — is engineered to withstand harsh environmental stress while maintaining round-the-clock readiness for government, military and corporate high-security facilities.
System Architecture

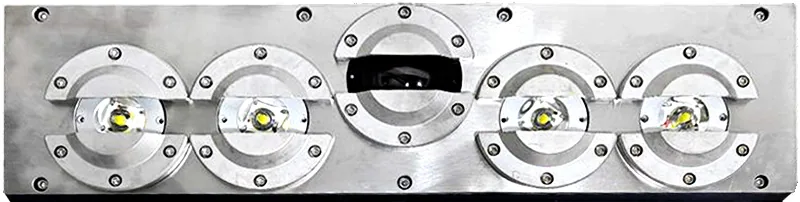

Vehicle Bottom Scanner (Main Body)

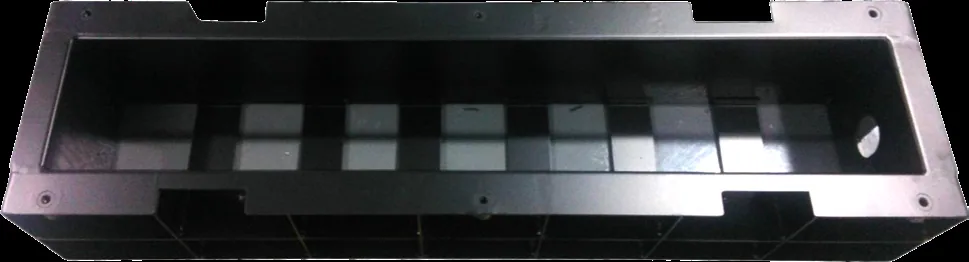

Pressure-Resistant Bottom Tank
Operating Console
Distribution Box
License-Plate Recognition Camera
Technological Advantages
The system pairs industry-leading linear-array imaging with automated analysis to deliver an unmatched layer of security at entry checkpoints.
High-speed imaging
Linear-array technology captures distortion-free images of vehicles in motion.
Load resilience
Rated for loads exceeding 50 tons — suitable for heavy freight and military vehicles.
High-speed image processing displays a full undercarriage image within one second.
Automatic comparison of current vs. historical scans highlights modifications and anomalies.
All-weather operation with integrated anti-fog air-circulation and drying system.
High-intensity auxiliary lighting with a service life exceeding 50,000 hours.
Standard Application Scope
Government & Borders
Customs checkpoints, airports, seaports and high-security state facilities requiring full vehicle visual validation.
Critical Public Events
Summits, stadiums and exhibition centres managing heavy traffic and VIP security with controlled access.
Military & Defense
Bases, restricted zones and sensitive industrial complexes where undercarriage threat detection is mission-critical.
Technical Specifications
| Group | Parameter | Specification |
|---|---|---|
| Imaging & Scanning | Imaging method | Linear-array CCD dynamic undercarriage imaging |
| Maximum scan rate | 18 kHz | |
| Image resolution | 12000 × 7500 px (≈ 20 megapixels) | |
| Vehicle passing speed | ≥ 1–80 km/h (recommended ≤ 30 km/h) | |
| Chassis loading time | < 1 second | |
| Undercarriage Scanner | Field of view | ≥ 175° |
| Auxiliary lighting | 320 W · service life > 50,000 hours | |
| Scanning direction | Bidirectional | |
| Load-bearing capacity | ≥ 50 tons (with pressure-resistant bottom tank) | |
| Ingress protection | IP68 | |
| Environmental & Structural | Operating temperature | −25 °C to +60 °C |
| Air circulation | Integrated anti-fog protection | |
| Structural design | Single-body, multi-sealed, dustproof & waterproof | |
| Scanner weight | 105 kg | |
| Scanner dimensions | 1100 × 280 × 180 mm | |
| Electrical & Software | Working voltage | DC 24 V |
| System power supply | AC 110–240 V, 50–60 Hz | |
| Image storage | ≥ 200,000 full-colour images | |
| LPR accuracy | ≥ 99% single character · ≥ 95% full plate | |
| Recognition time | < 20 ms |
